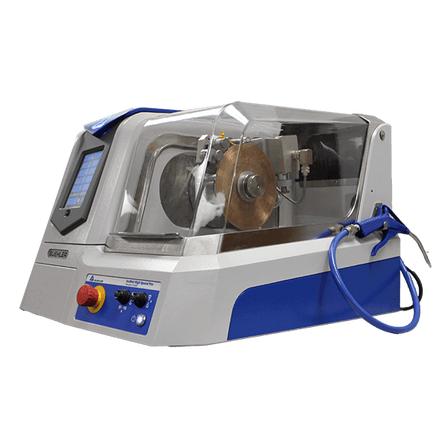

Buehler IsoMet High Speed Pro Benchtop Precision Metallographic Cutting Machine

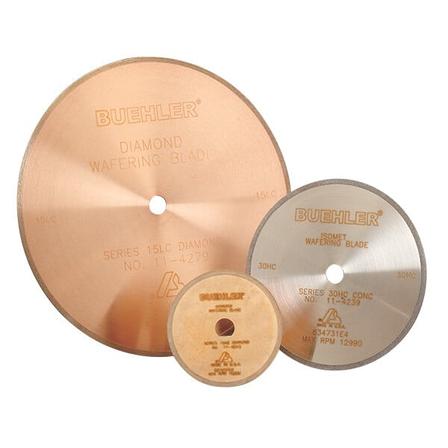

Equipped with a powerful 2kW (2.7HP) high-torque motor, it delivers cutting speed 2.5 times faster than conventional precision cutters while minimizing thermal deformation, edge chipping and surface damage of specimens. The variable spindle speed ranges from 1000–5000 RPM, perfectly compatible with diamond & CBN cutting blades for soft metals, hard alloys, ceramics, PCB laminates and fragile composite materials.

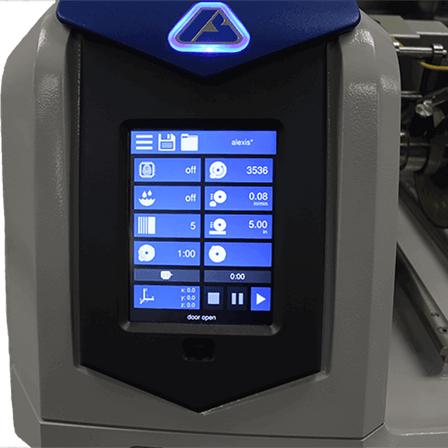

This model adopts 3-axis (X/Y/Z) blade moving system with 1μm ultra-fine positioning accuracy, built-in green laser alignment for quick cutting line calibration, and tool-free quick vise clamping to drastically shorten sample setup time. It supports automatic serial multi-slice cutting with programmable cutting thickness, all cutting recipes can be saved and recalled via a 6.5-inch color touchscreen, realizing standardized repeatable sample preparation.

Exclusive SmartCut intelligent feed control automatically adjusts feeding speed according to material hardness to prevent blade overload and sample distortion. Built-in automatic wheel dressing system keeps the cutting blade sharp consistently, maintaining uniform cut quality during long batch processing. The fully enclosed splash-proof safety hood with interlock switch and emergency stop button ensures lab operation safety, with low noise operation at
