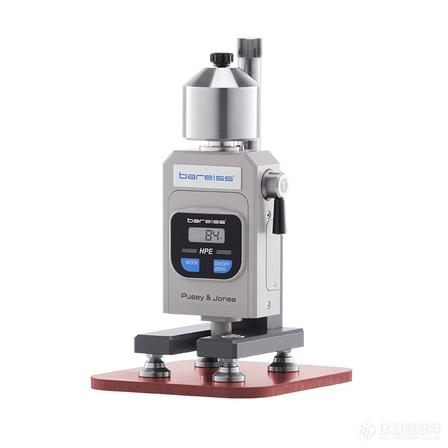

Bareiss HPE II-PJ Digital Pusey & Jones Durometer, German Import Rubber Roller Hardness Tester
Original Germany Bareiss HPE II-PJ PJ hardness tester specially designed for printing & textile rubber roller hardness test, complies with ISO 7267-3 & ASTM D531, adjustable movable feet for curved roller surface measurement, built-in balance indicator window, 1000g standard test load, 300 groups data storage, stable & repeatable test result.
Contact Us
Product Details
Manufactured by Bareiss Prüfgerätebau GmbH Germany, the HPE II-PJ Pusey & Jones durometer is professional digital hardness testing instrument exclusively for vulcanized rubber rollers used in papermaking, printing, textile and coating industries.It follows standard Pusey & Jones testing method: 1000g fixed load with Ø3.175mm spherical indenter, hold 60 seconds to read stable hardness value, depth reading accuracy up to 0.01mm, fully meets ISO 7267-3 and ASTM D531 international testing standards.
Different from common flat-surface durometers, this PJ model adopts adjustable movable support feet, which can fully fit curved cylindrical rubber roller surfaces without tilt. Equipped with built-in balance level window, operators can quickly confirm vertical placement to eliminate measurement deviation caused by skew contact. Integrated standard counterweight ensures uniform pressure during long-time testing, greatly improving data repeatability.

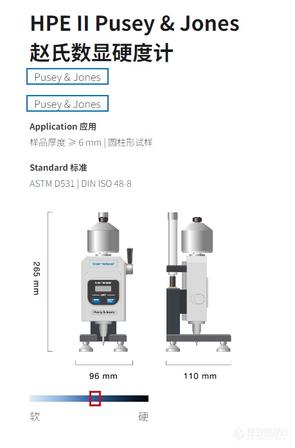

The whole machine adopts high-strength aluminum alloy housing with compact size 250×90×130mm, total weight 3.3kg, equipped with clear LCD digital display. It supports storage of up to 300 sets of test data, with RS232 data output interface for connecting PC to export test records. Built-in reminder sound signal alerts users when testing time is finished, effectively avoiding human operation errors. Powered by long-life lithium battery, continuous working time reaches 2000 hours for workshop continuous inspection.
Widely applicable to rubber rollers with thickness ≥13mm, including printing ink rollers, papermaking press rollers, textile calender rollers, coating composite rollers and other large curved rubber workpieces, ideal quality control equipment for rubber roller manufacturers and printing factories.
Core Features
- Germany original Bareiss brand, full compliance with ISO 7267-3, ASTM D531 PJ hardness testing standards
- Standard 1000g constant test load, Ø3.175mm spherical indenter, test precision 0.01mm indentation depth
- Adjustable movable support feet, perfectly fit curved cylindrical rubber roller surfaces
- Built-in balance indicator window to ensure vertical measurement and eliminate tilt error
- Integrated counterweight structure, stable pressure output, consistent test data repeatability
- Digital LCD display, store maximum 300 groups measurement data, RS232 PC data transmission
- Acoustic completion reminder, avoid manual timing error; long service lithium battery (2000 working hours)
- Durable aluminum alloy body, stable structure, suitable for long-term factory on-site quality inspection
